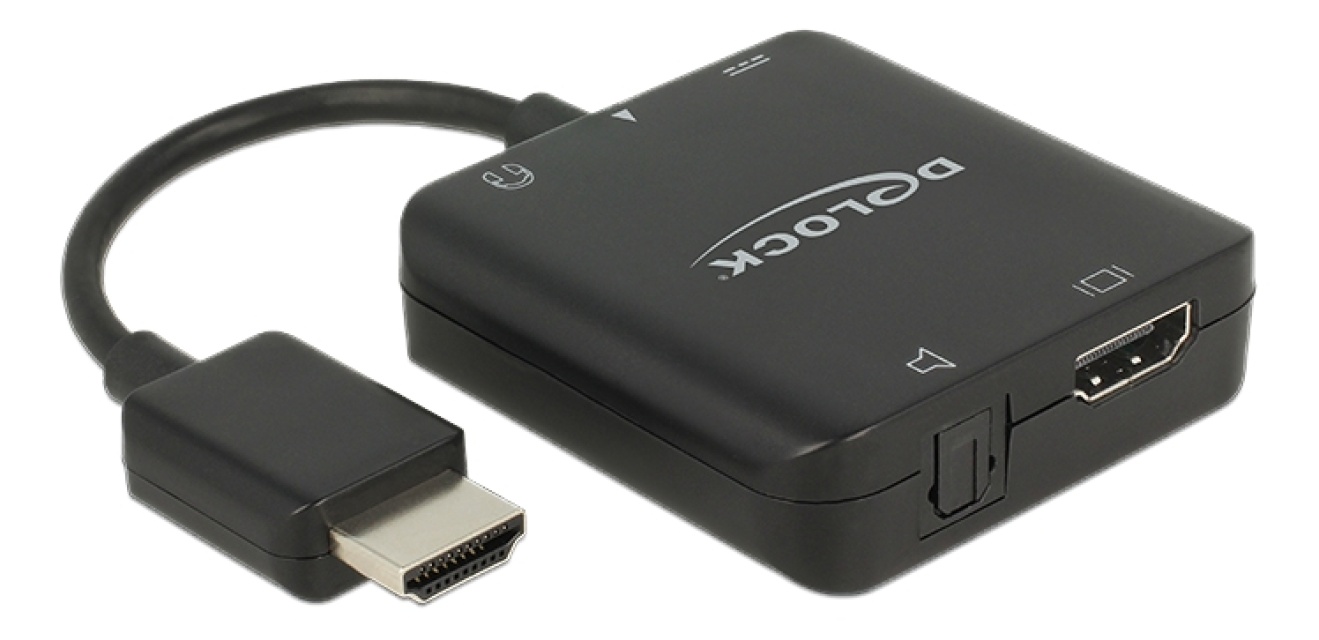

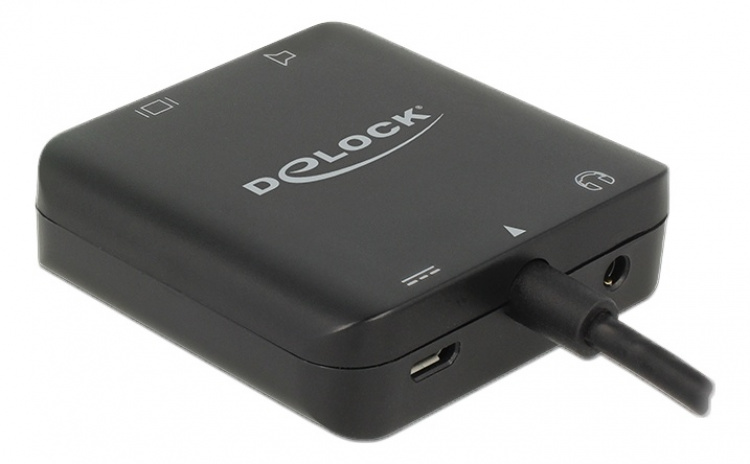

DeLOCK HDMI Audio Extractor, 3840x2160 at 30Hz (8 bit), HDMI male, HDMI female, Micro-B cable included, black
Description
This adapter by Delock can be used to extract the audio signal from an HDMI transmission. While the video signal is displayed on a TV or monitor, the audio signal can be sent digital (S/PDIF) or analogue (stereo) to other devices, such as headphones or a surround receiver.
Specification
• Connector:
Input:
1 x HDMI-A 19 pin male
1 x USB Type Micro-B male (5 V power supply)
Output:
1 x HDMI-A 19 pin female
1 x 3.5 mm 3 pin stereo jack female (audio)
1 x TOSLINK female S/PDIF
• High Speed HDMI, 3D and HDCP 1.4
• Automatic switching to stereo (2.0) when using the stereo jack and automatic muting of
the digital output
• Resolution up to 3840 x 2160 @ 30 Hz (8 bit), 1920 x 1080 @ 60 Hz (12 bit)
• Video bandwidth up to 300 MHz / 3 Gb/s per channel, 9 Gb/s max.
• Supports all common 2.0 and 5.1 audio formats: LPCM, Dolby Digital, DTS Audio
• Supported sample rates: 16 / 20 / 24 bit, 32 / 44.1 / 48 / 88.2 / 96 kHz (depending on the
system and the connected devices)
• HDMI audio routed to the output (pass-through)
• Power consumption: max. 2 W
System requirements
• A free HDMI-A female port
• A free USB Type-A female port
Package content
• HDMI Audio Extractor

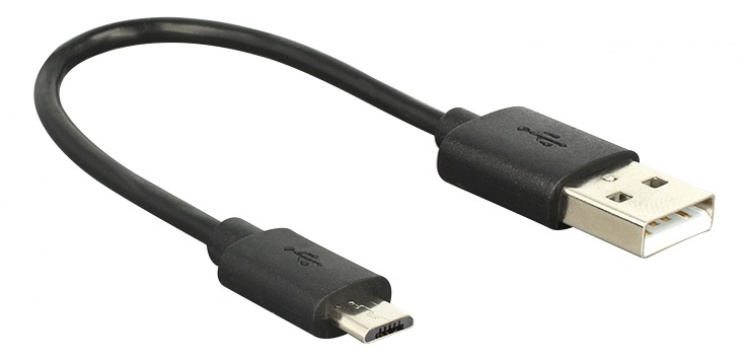

• USB Type-A to Type Micro-B cable, length ca. 15 cm
• User manual
Package
• Retail Box
