BIOS properties: UEFI BIOS
BIOS type: AMI
Width: 24.4 cm
Bus clock: 6200 MHz (O.C.)
Depth: 24.4 cm
Features: Dual-channel memory architecture, Intel Extreme Memory Profiles (XMP), AMD EXPO technology.
Expansion card slots: 1 x CPU | 4 x DIMM 288 pins | 1 x PCIe 4.0 x16 | 1 x PCIe 4.0 x16 (x4 mode) | 2 x PCIe 3.0 x1 | 2 x M.2 socket (2260/2280 M.2 Key M slot)
Interfaces: 1 x USB 3.2 Gen 2 | 1 x LAN (2.5Gigabit Ethernet) | 1 x USB-C 3.2 Gen 2 | 1 x DisplayPort | 1 x HDMI | 4 x USB 2.0 | 2 x USB 3.2 Gen 1 | 1 x audio input - mini-jack | 1 x audio output - mini-jack | 1 x microphone - mini-jack
Hardware Features: 15µ Gold Contact, 2oz Copper PCB, Water Pump Header, pre-assembled I/O protection, ASRock POST Status Checker (PSC), 12+2+1 Phase Power Design, ASRock Auto Driver Installer
Included accessories: Standoff for M.2 sockets
Internal Interfaces: 2 x USB 3.2 Gen 1 - header | 1 x USB 3.2 Gen 1 - header | 2 x USB 2.0 - header | 1 x SPI - header | 1 x audio - header
Compatible processors: Ryzen (support for Ryzen 7000 Series)
Circuit type: AMD B650
Storage Interface: SATA-600 connectors: 4 x 7 pin Serial ATA - RAID 0 / RAID 1 / RAID 10 | PCIe 5.0 connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 | PCIe 4.0 connectors: 1 x M.2
Maximum size: 128 GB
Maximum number of processors: 1
Supplied cables: 2 x Serial ATA cable
Included Software: ASRock Phantom Gaming Tuning, ASRock Phantom Gaming LAN Software, ASRock Polychrome SYNC
Network interface: 2.5 Gigabit Ethernet
Network Controller: Dragon RTL8125BG
Processor Socket: Socket AM5
Registered or buffered: Unbuffered
Standards Compliance: FCC, EuP Ready, ErP Ready, DisplayPort 1.4, HDCP 2.3
Power connectors: 4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector
Supports Ram Integrity Check: Non ECC
Technology: DDR5
Type: HD Audio (7.1 channel)

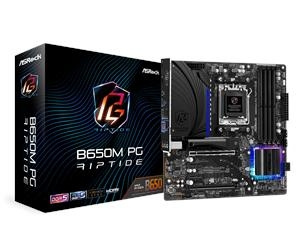

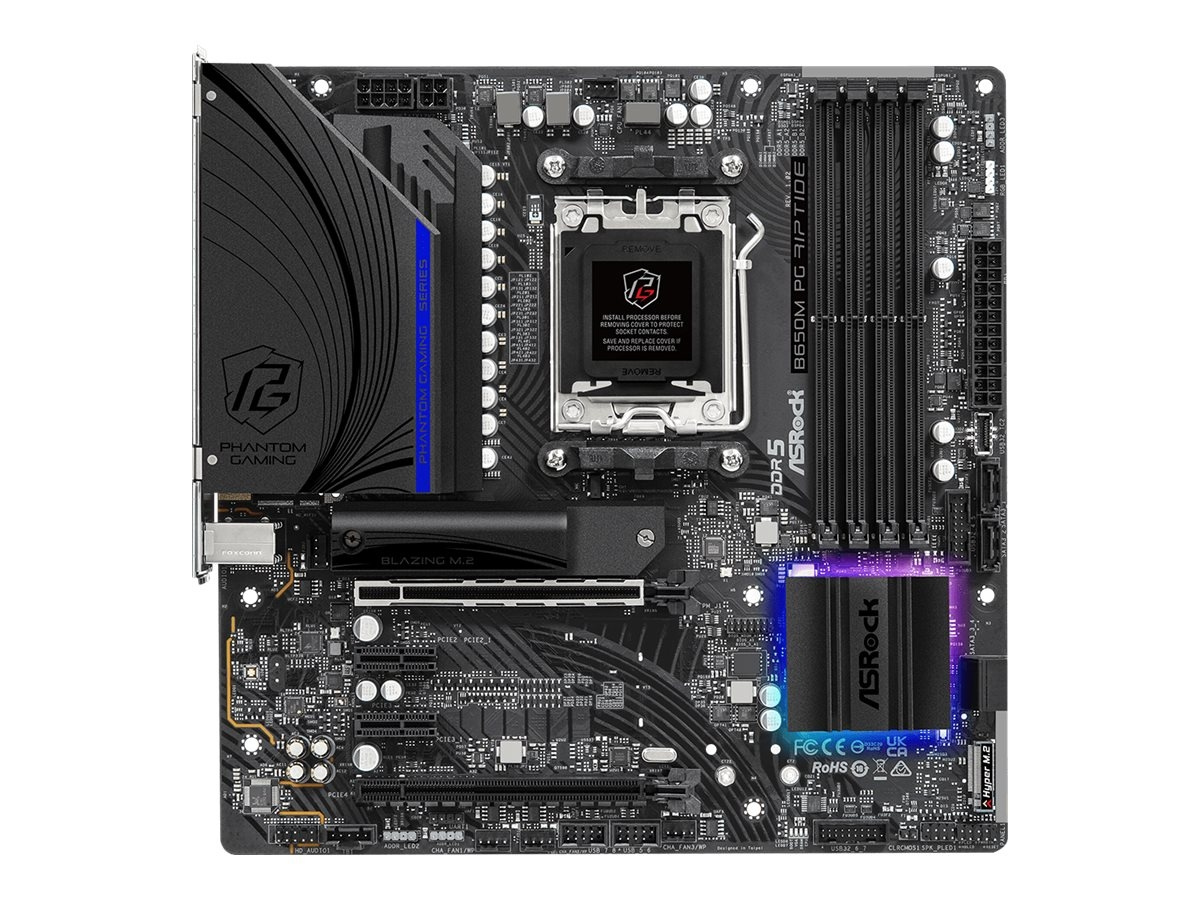

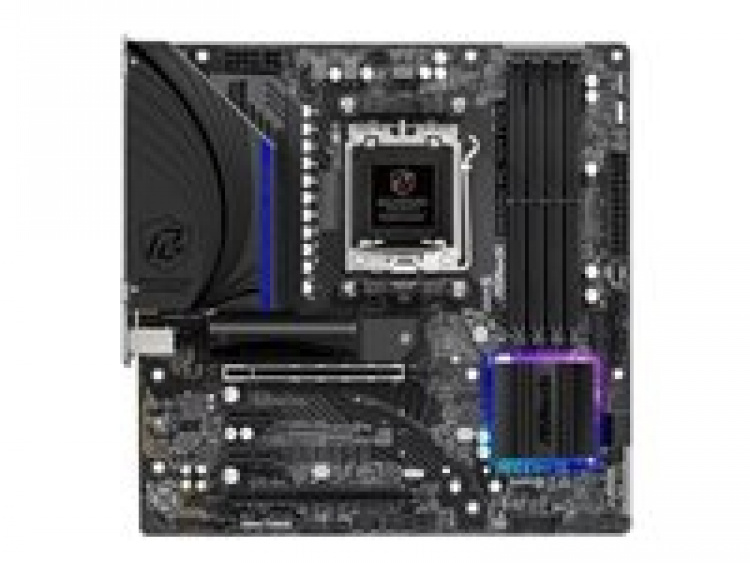

Product Type: Motherboard - micro ATX
4710483940835EAN:
