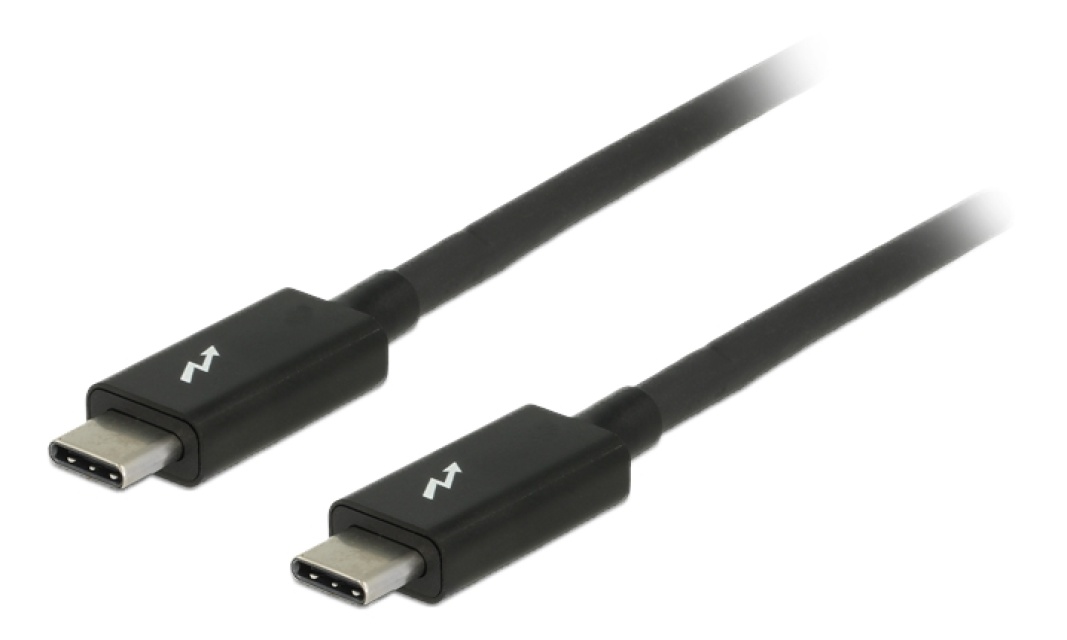

DeLOCK Thunderbolt 3 cable, 1m, 20Gbps, USB-C, up to 100W, Cypress E-marker Chipset, 5120x2880 at 60Hz, black
This Thunderbolt 3 cable by Delock is universally applicable and combines all the advantages of the Thunderbolt 3 interface. It allows the connection of different devices such as external enclosures, monitors, card readers and docking stations via a Thunderbolt 3 port of a PC or laptop. The cable provides data transfer rates of up to 20 Gb/s and supports USB, Displayport, PCI Express as well as Ethernet data transfer. The connection of a 5K or a 4K Displayport monitor is possible, as is the connection of USB 3.1 Gen 2 devices. Furthermore the cable enables the power supply of connected devices with up to 100 W.
Specification
• Connector:
1 x Thunderbolt 3 USB-C 24 pin male >
1 x Thunderbolt 3 USB-C 24 pin male
• Chipset: Cypress E-Marker
• Cable gauge:
32 + 34 AWG data line
24 + 34 AWG power line
• Cable diameter: ca. 4.4 mm
• Conductors: 8 x coaxial for SuperSpeed USB, 1 x Twisted Pair for USB 2.0
• Gold-plated connector
• Triple shielded cable
• Data transfer rate:
Thunderbolt 3 up to 20 Gb/s
Displayport 1.2a up to 21.6 Gb/s
SuperSpeed USB up to 10 Gb/s
Thunderbolt Networking up to 10 Gb/s (Peer-To-Peer)
• Display resolution up to:
1 x 5120 x 2880 30 Bit at 60 Hz or
1 x 4096 x 2160 30 Bit at 60 Hz
(depending on the system and the connected hardware)
• Supports data and video on a single cable
• Supports PCI Express 3.0 protocol (4 lanes)
• Supports Displayport 1.2a protocol (8 lanes, HBR2 and MST)
• Daisy Chain up to 6 Thunderbolt devices (cascadable)
• Dual channel, bi-directional data transfer
• Power supply via USB Power Delivery up to 100 W (20 V / 5 A)
• Power supply for Thunderbolt 3 devices with bus power (max. 15 W)
• Colour: black
• Length without connector: ca. 1.0 m
System requirements
• PC or laptop with a free Thunderbolt 3 port
Package content
• Thunderbolt cable
Package
• Retail Box
