Delock USB 2.0 to Serial TTL Converter with 6 pin header female separa

Artikkelnr: A16852
391 kr

Legg i handlekurven
Leveringstid:  3-7 arbeidsdager

  • Qliro Checkout
  • Rask levering - leveringstid er vist i kassen
  • Returret - 100 dagers åpent kjøp
Information

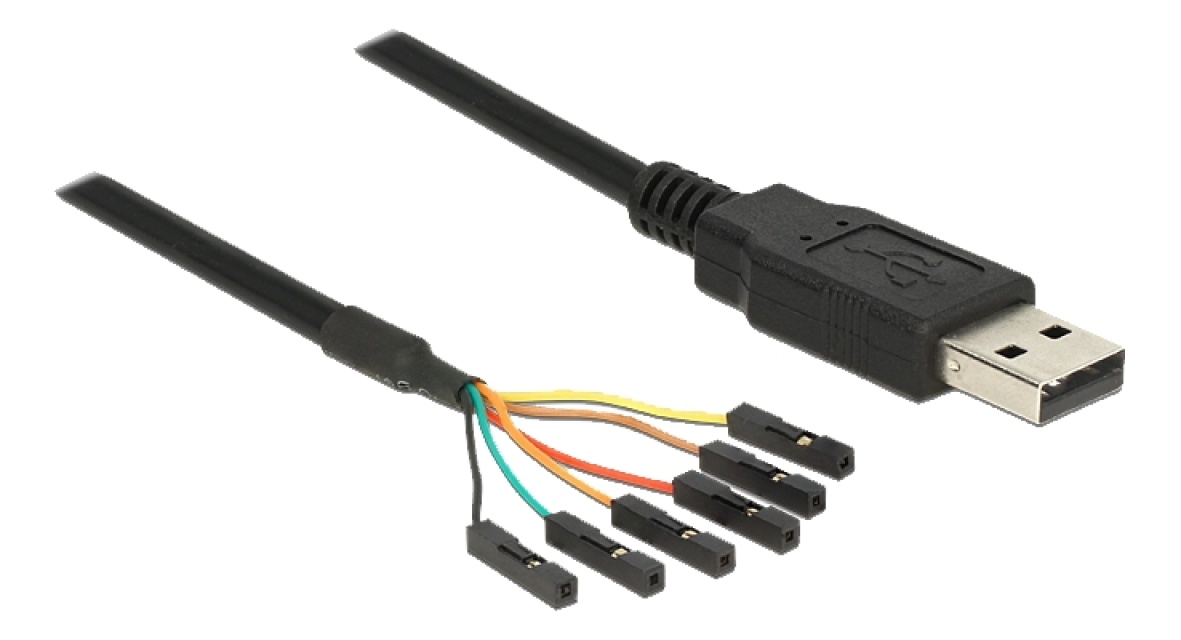

Delock USB 2.0 to Serial TTL Converter with 6 pin header female separately 1.8 m (5 V)

This USB 2.0 to TTL converter by Delock can be connected directly to GPIO  (General purpose input / output) connectors or UART (Universal Asynchronous Receiver / Transmitter) interfaces. The converter is suitable for applications on single-board computers, controllers, FPGAs, MCUs and in circuit electronics etc.

Connectors:
  1 x USB 2.0 Type-A male >
  1 x TTL 5 V 6 pin header female separately
• Chipset: FTDI FT232RL
• Cable gauge: 26 AWG
• No-load current: 70 uA
• Compatible to UHCI / OHCI / EHCI controller
• Data transfer rate up to 3 Mbps
• Databits: 7 or 8
• Stop bits: 1 or 2
• Parity: none, space, even, odd, mark
• Flow control: none, hardware RTS / CTS, software XON / XOFF
• FIFO:
  128 Byte - RX
  256 Byte - TX
• Cable length incl. connectors: ca. 1.8 m
• Operating temperature: -20 °C ~ 80 °C

Package contents: Converter USB 2.0 serial TTL, driver CD, user manual.

4043619837861EAN:
