DeLOCK Keystone Module RJ45 jack > LSA Cat.6A STP

Artikkelnr: C70738

Connectors: external: 1 x RJ45 jack (8P/8C) > internal: LSA (toolfree)
Cat.6A specification
Shielded (STP)
Compliant with Cat.6A requirements of ISO/IEC 11801 Edition 2.2, EN 50173-1:2011 and EN 60603-7-51, and ANSI/TIA 568-C.2
Material: zinc die cast
TIA-568A/B pinout

133 kr

Qliro Checkout
Rask levering - leveringstid er vist i kassen
Returret - 100 dagers åpent kjøp

Information

Bruttovekt:	0.024 kg
Farge:	Sølv
Kabellengde:	0.03m
Kabelstandard:	Cat 6a
Kabeltype:	Nettverk
Kontakt 1:	RJ45-shielded-female
Kontakt 2:	Open end network

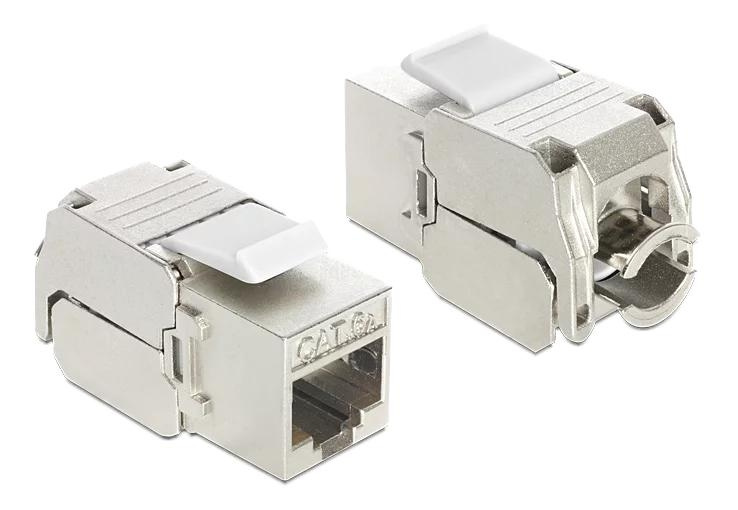

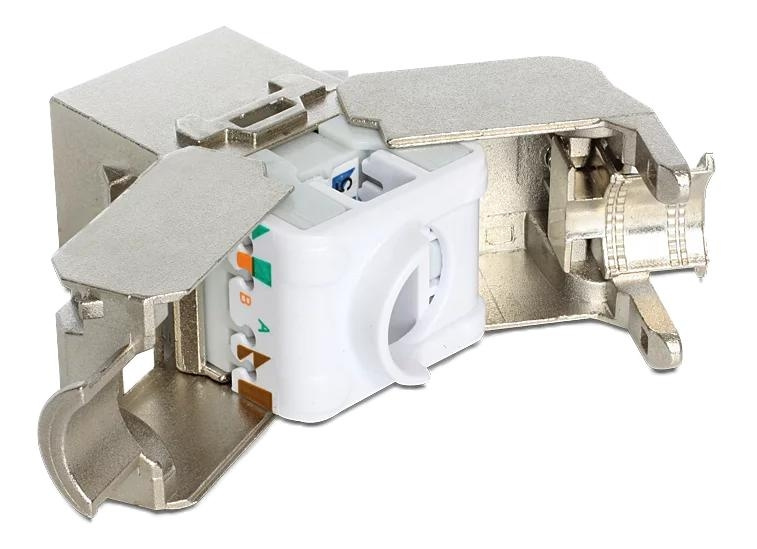

This module by Delock can be used to connect twisted pair cable to an RJ45 jack. With its standardised dimensions it can be used for easy snap-in mounting in e.g. a Keystone patch panel, face plate or surface-mount box.

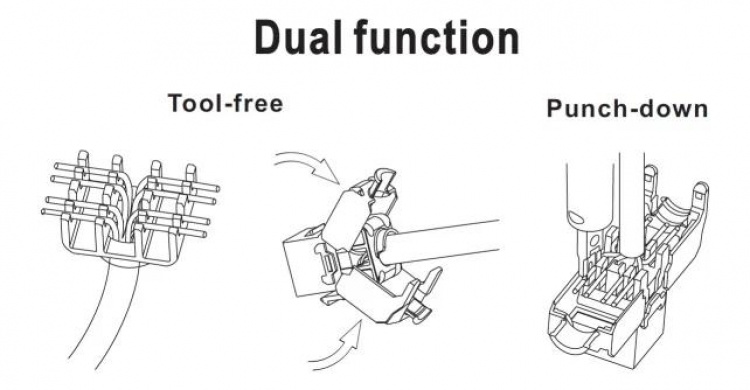

Connectors: external: 1 x RJ45 jack (8P/8C) > internal: LSA (toolfree)
Cat.6A specification
Shielded (STP)
Compliant with Cat.6A requirements of ISO/IEC 11801 Edition 2.2, EN 50173-1:2011 and EN 60603-7-51, and ANSI/TIA 568-C.2
Material: zinc die cast
TIA-568A/B pinout
For solid or stranded wire up to 0.573 mm (23 - 26 AWG)
For cable diameter from 6.0 - 8.5 mm
For Keystone ports with 19.2 x 14.9 mm
Dimensions (LxWxH): ca. 37.8 x 16.0 x 22.5 mm

4043619862054EAN:
