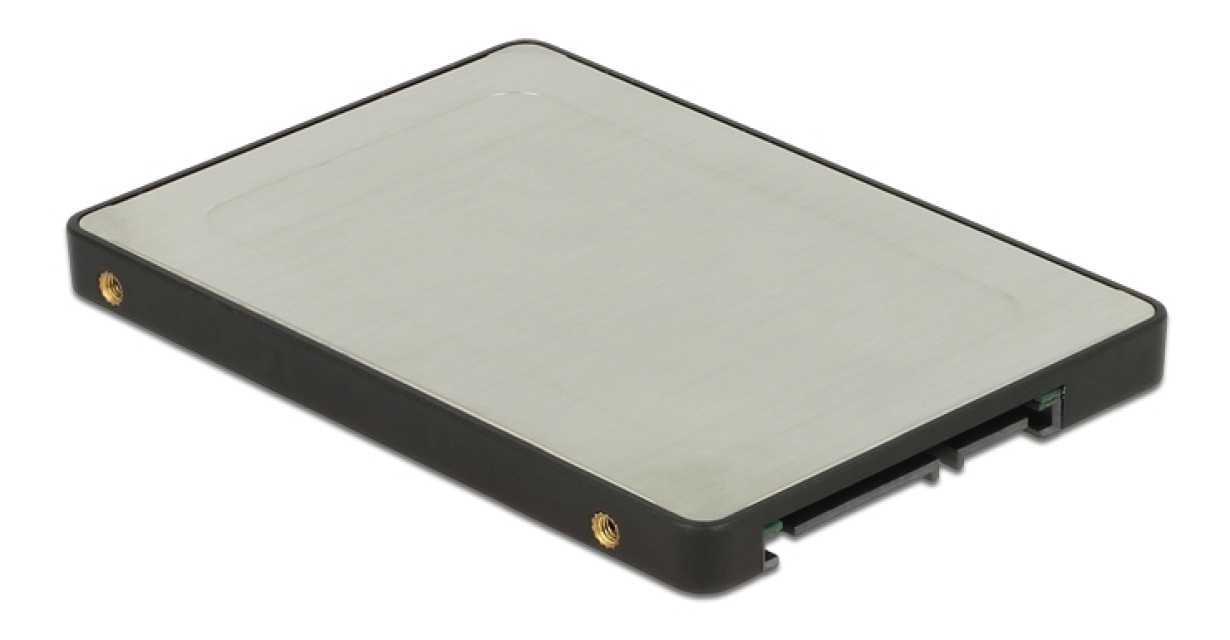

DeLOCK 2.5" Converter Enclosure, M.2 SATA - SATA 22-pin, for M.2 2280/2260/2242/2230 modules with Key B or Key B+M based on SATA, grey/black

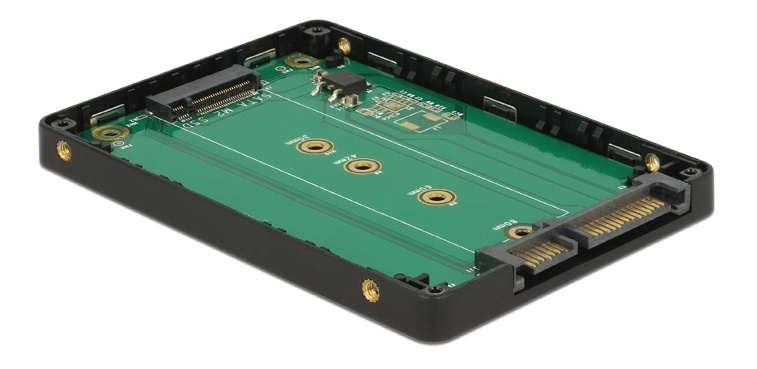

This Delock converter enables the connection of a M.2 SSD in 2280, 2260, 2242 and 2230 format. It can be used as a replacement for a 2.5″ HDD. The converter will be installed into the system internally through a SATA 22 pin interface.
Specification
• Connectors:
1 x SATA 6 Gb/s 22 pin plug >
1 x 67 pin M.2 key B slot
• Interface: SATA
• Form factor: 2.5″
• Supports M.2 modules in format 2280, 2260, 2242 and 2230 with key B or
key B+M based on SATA
• Maximum height of the components on the module: 1.25 mm
application of double-sided assembled modules supported
• Data transfer rate up to 6 Gb/s
• Bootable
System requirements
• Windows 7/7-64/8.1/8.1-64/10/10-64, Linux Kernel 3.16.0
• A free SATA 22 pin interface
Package content
• Converter
• 1 x fixing screw
• Screwdriver
• User manual
Operating temperature: 0 °C ~ 70 °C
Storage temperature: -40 °C ~ 85 °C
Dimensions (WxDxH): 70x100x8mm
